Part Number: 65/1010
/Vendor ID Number: 81
/Custom:

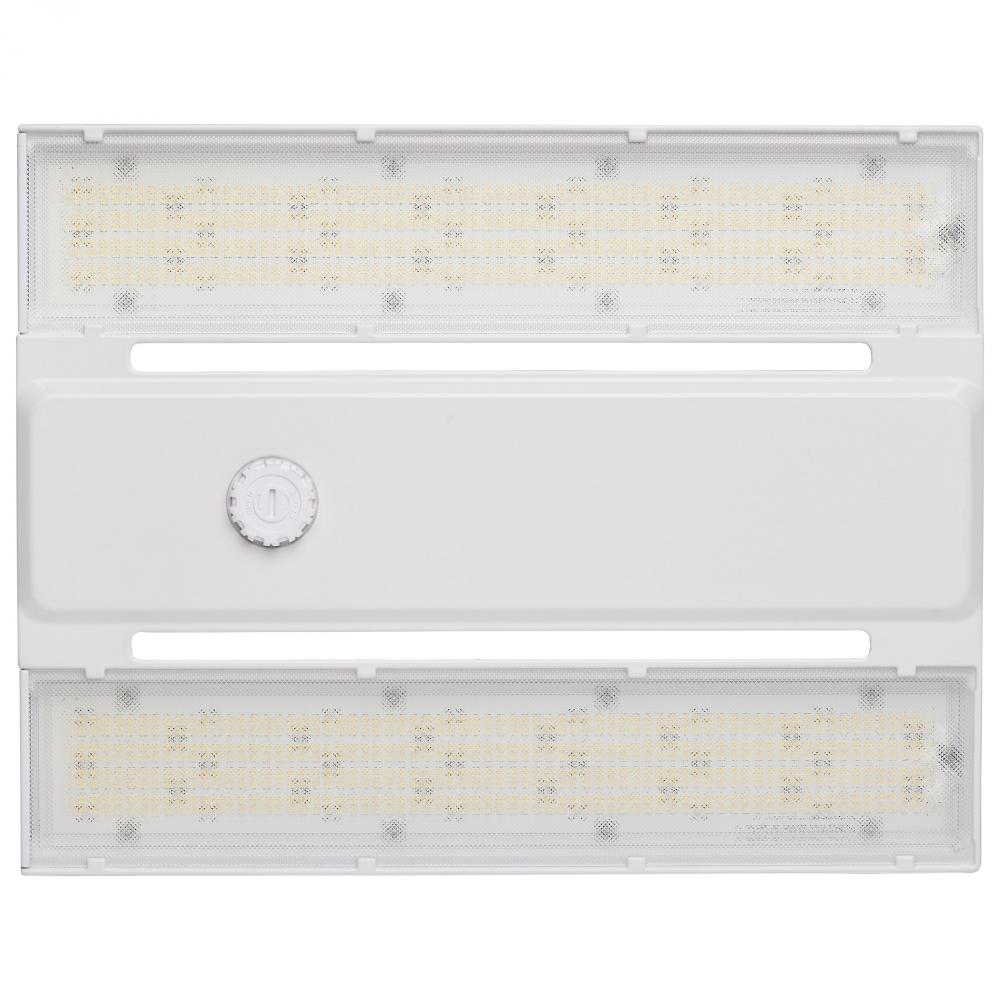

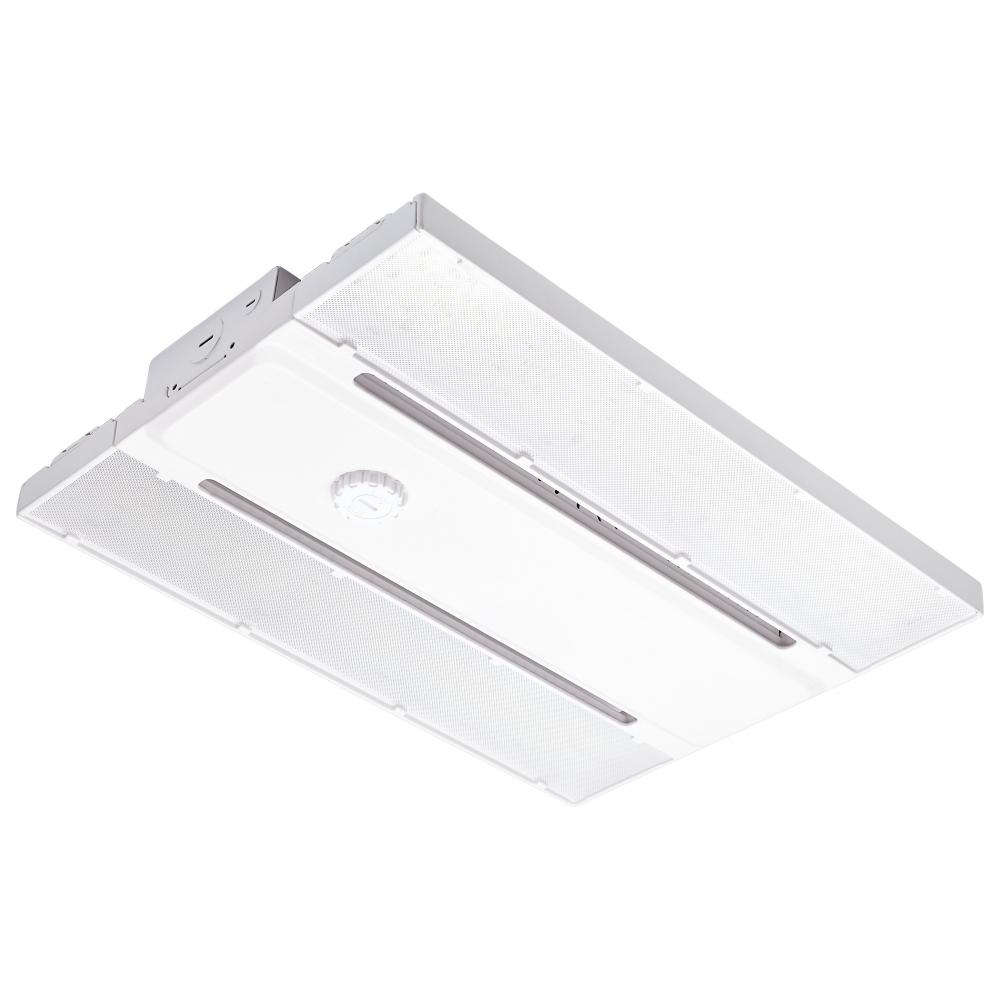

LED Linear High-Bay With Interchangeable Lens; 65W/75W/85W Wattage Selectable; 3K/4K/5K CCT
by Nuvo
87
99
Pack Of: 1
303 In Stock
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.77"
Width: 11.02"
Finish
White
Product Overview

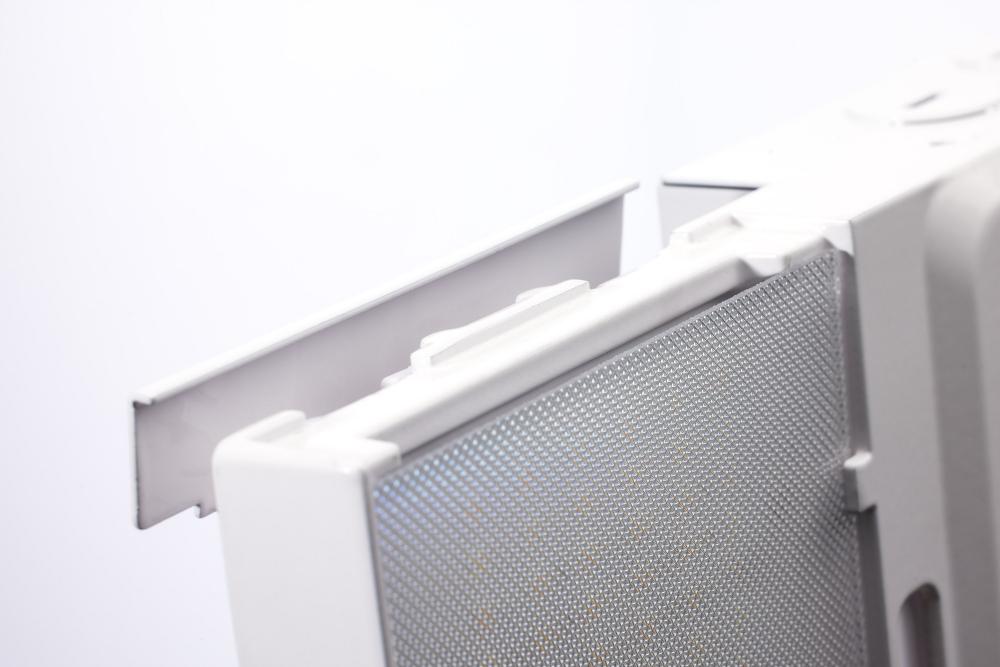

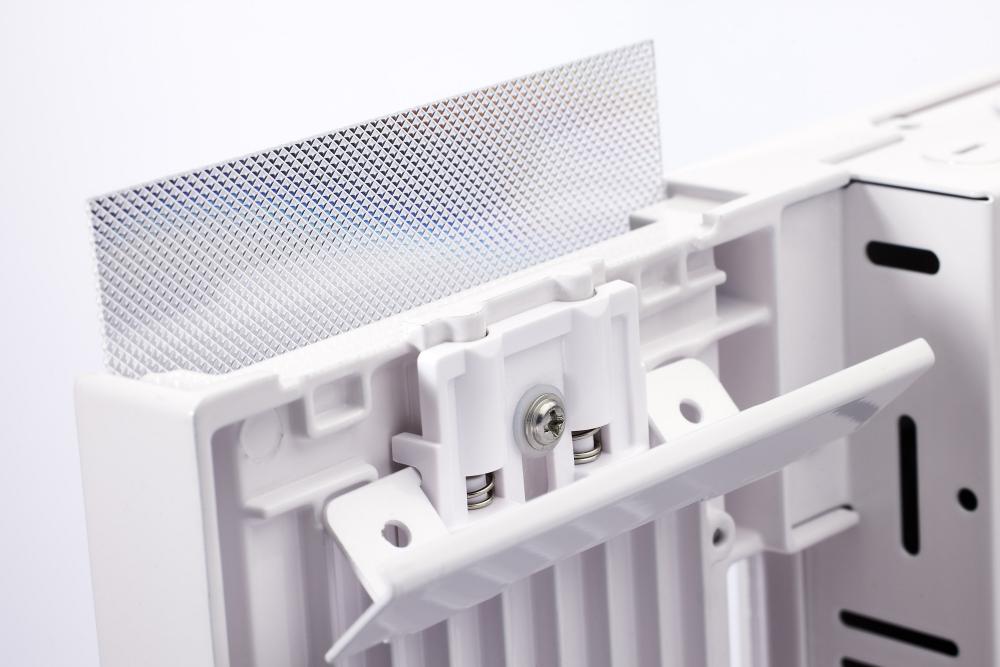

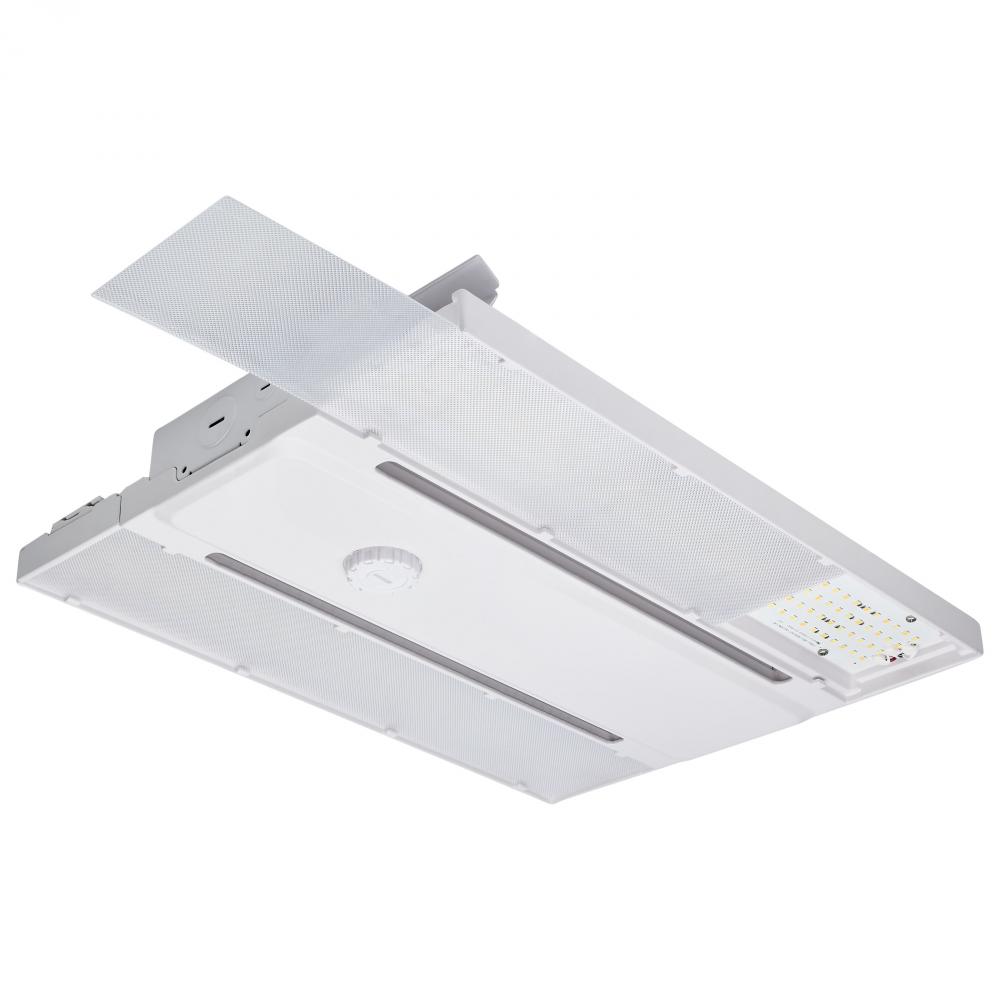

LED Linear High-Bay With Interchangeable Lens; 65W/75W/85W Wattage Selectable; 3K/4K/5K CCT Selectable
Product Availability
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Utility
Subcategory:
Other Utility
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Hi-Bay
Sub Category:
Linear
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
2.95
Each Length:
14.96
Each Width:
11.81
Length:
14.17
Lumens:
9474L-12739L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Amps:
0.542-0.235/0.625-0.271/0.708-0.307A
ANSI Base:
Integrated
Beam Angle:
90x90
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
0.3016
Each Quantity:
1
Efficacy:
145.75/148.09/149.87 LPW
FCC Compliant:
Yes
Feature 1:

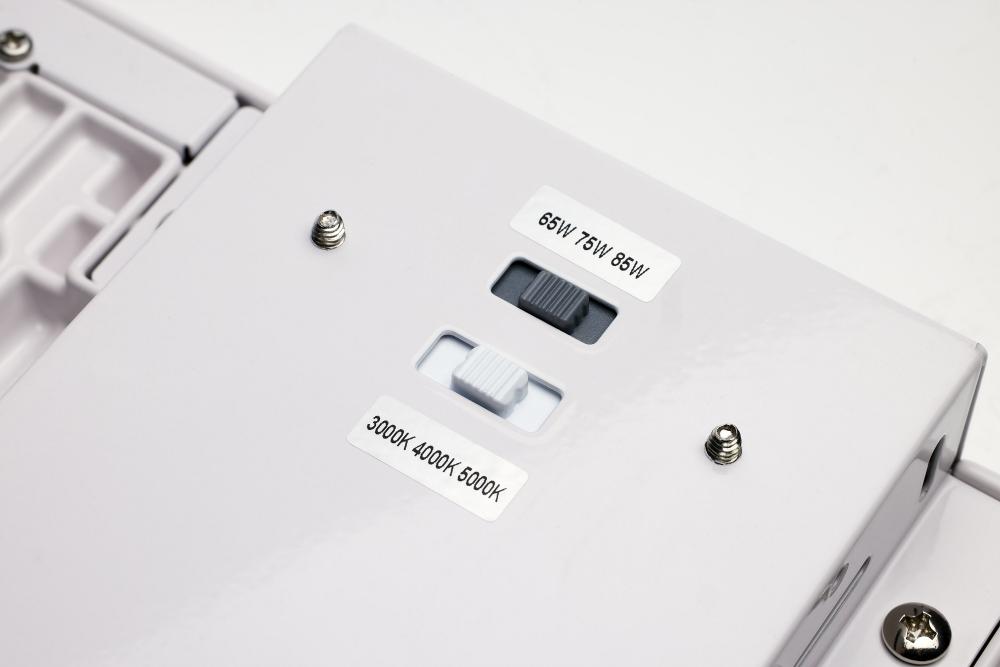

CCT and Wattage Selectable
Feature 2:
Flicker Free Driver
Feature 3:

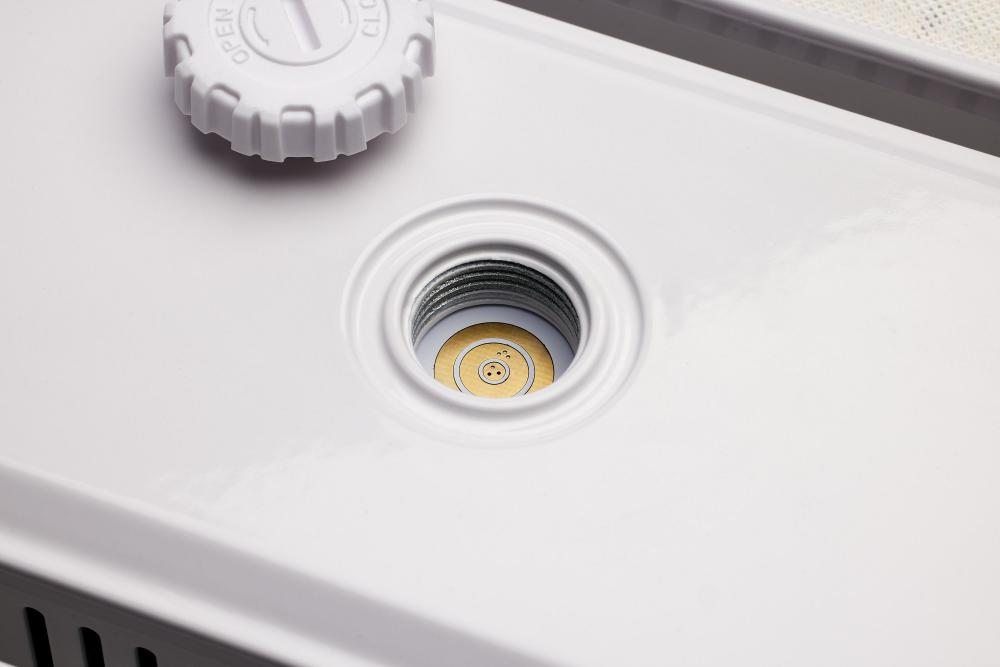

Integrated Sensor Port
Feature 4:
41-inch Suspension Kit Included
Feature 5:
6kV Surge Protection
Feature 6:
5 Year Warranty
Finish Family:
White
Flr Equiv:
135W-190W
Has Driver:
Yes
HID Equiv:
200W
Housing Color:
White
Includes:
41 Inch Suspension Kit
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No

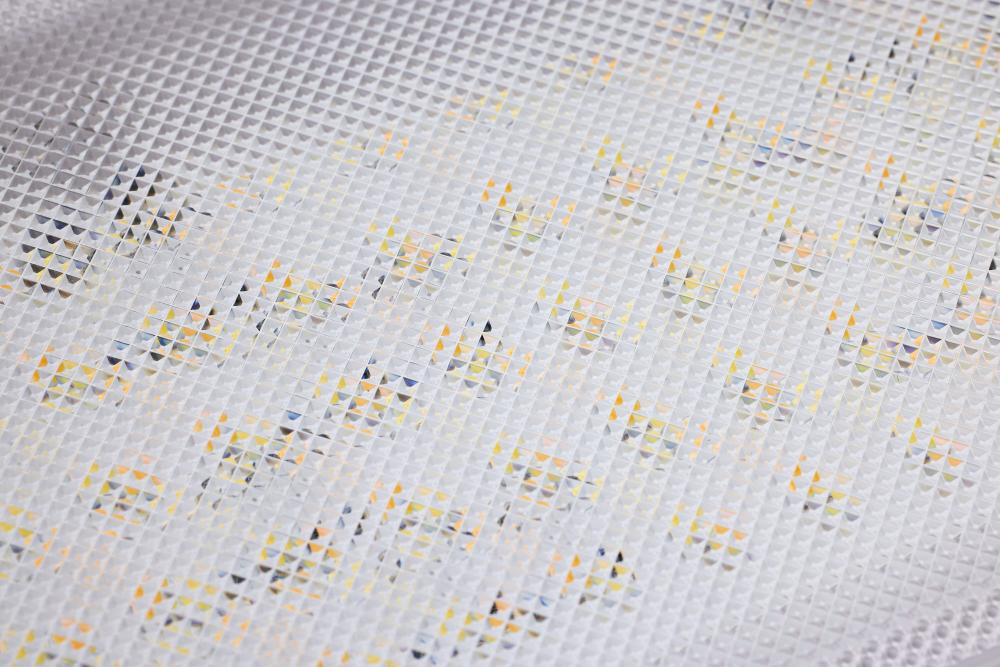

Lens Material:
Polycarbonate (PC)
Long Description:
Introducing SATCO|NUVO's versatile High Bay Fixture, designed for ultimate lighting adaptability. Our field selectable fixture comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The inclu
Material:
Die-Cast Aluminum
Mounting Procedure:
Surface/Suspension: Mounting Bracket/Cables/Chain
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +55C (+131F)
Pack Type:
Kraft Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing SATCO|NUVO's versatile High Bay Fixtures, designed for ultimate lighting adaptability. Our field selectable fixtures comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The inc
Safety Listing:
cULus - Certified
Short Description:
LED SELECTABLE LINEAR HIGH BAY
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
5.07
Manufactured By:
Nuvo
