Item Sales Info
Part Number: S9011 / Vendor ID Number: 27 / Custom:

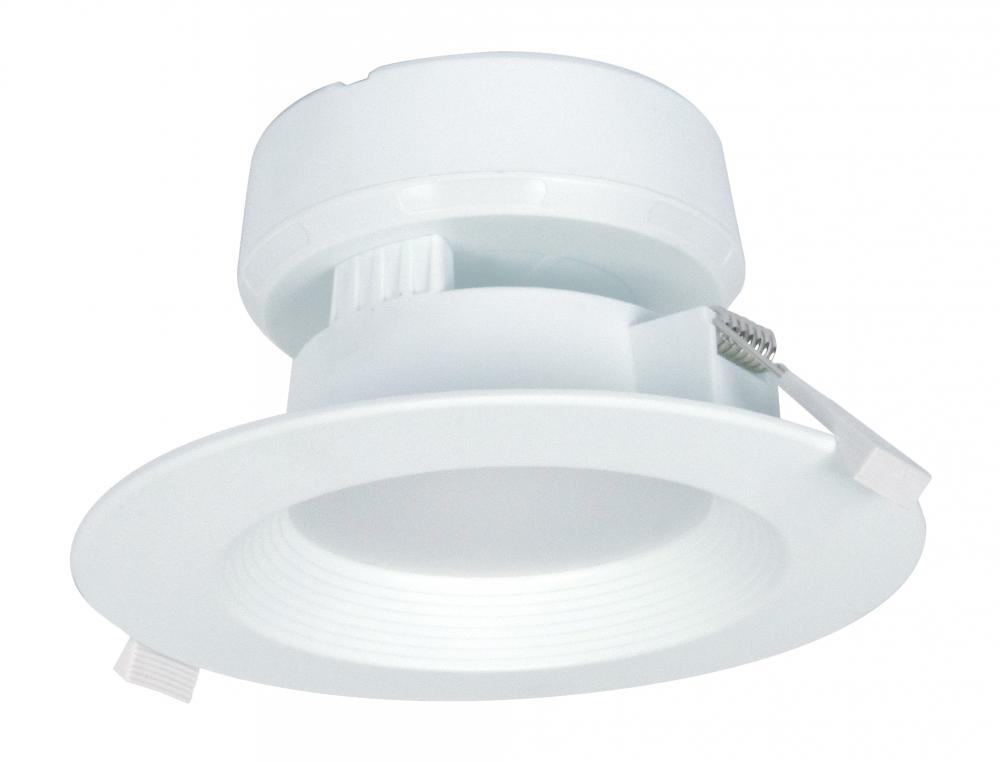

7 watt LED Direct Wire Downlight; 2700K; 120 volt; Dimmable

7 watt LED Direct Wire Downlight; 2700K; 120 volt; Dimmable
by Satco Products Inc.

Call For Price
7 In Stock
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.25"
Width: 5.75"
Finish
White
Product Overview
7 watt LED Direct Wire Downlight; 2700K; 120 volt; Dimmable
Product Availability
    Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Style:
Contemporary
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Direct Wire
Style:
Contemporary
Bulb Hours:
40000
Bulb Kelvin:
Warm White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
5.75
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.50.0091
Lumens:
550L
Ship Carton Height:
7.95
Ship Carton Length:
6.3
Ship Carton Width:
3.74
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.058A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
100
CA Prop-65:
Lead
Carton Cubic Feet:
0.1084
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Ceiling Aperture:
4.125 in. Cutout
Connection:
Direct Wired
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
Efficacy:
78.57 LPW
FCC Compliant:
Yes
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
45W
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Material:
Aluminum
Max Drywall Thickness:
1-1/4 in.
Mounting Procedure:
Ceiling
Operating Temprature:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
7WLED/DW/RDL/4/27K/120V
Temperature (CCT):
2700K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.84
Manufactured By:
Satco Products Inc.
